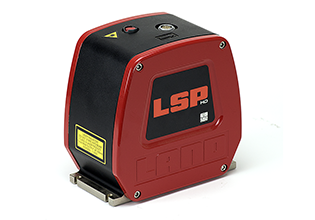

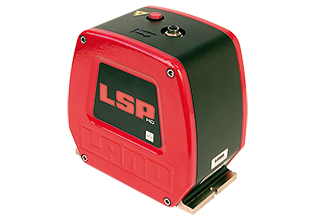

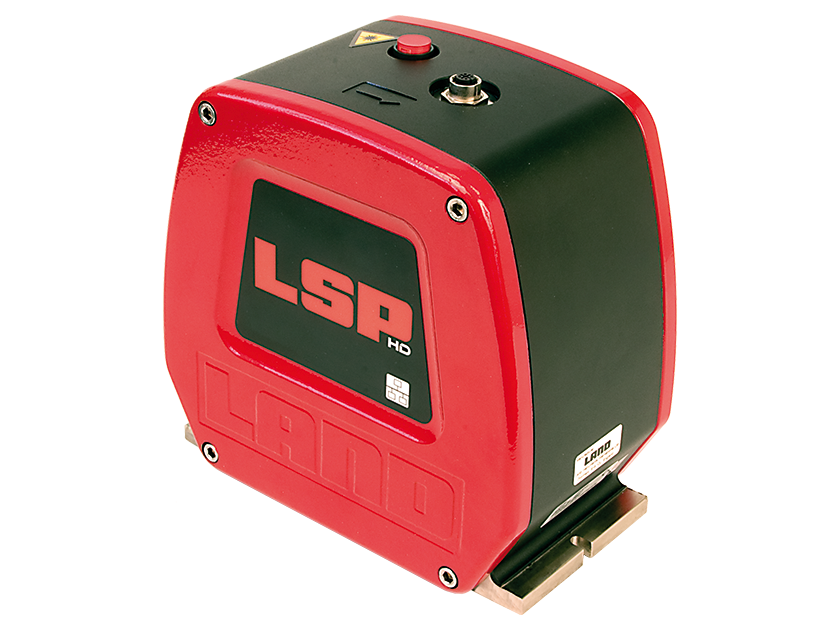

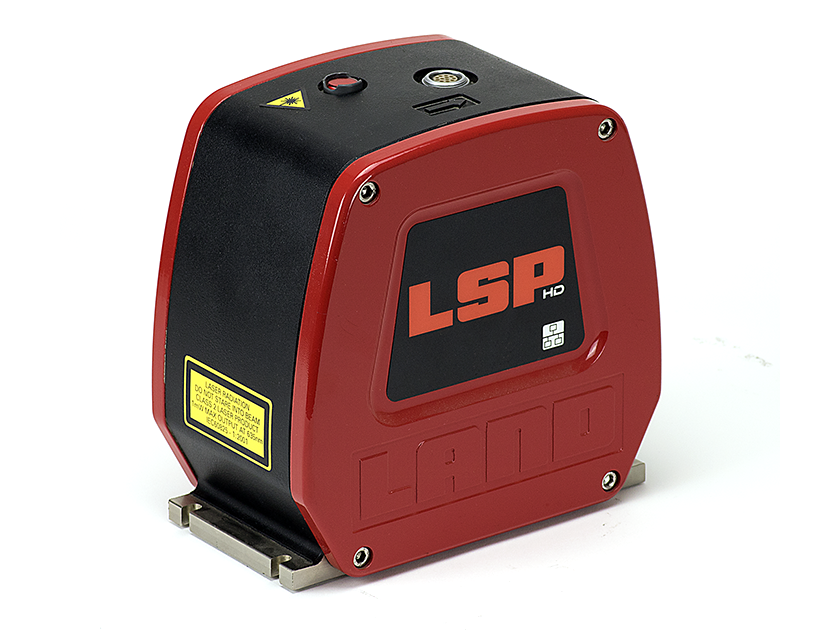

LSP-HD 行扫描仪

AMETEK Land Fixed Thermal Imagers & Line Scanners - LSP-HD
设计紧凑、精密的高精度红外线扫描仪，可用于生成移动过程的高级热图像。

  • 概述 +


    LSP-HD 系列红外线扫描仪设计紧凑，可通过标准以太网连接轻松集成。特定型号的产品能为各种应用提供高精度的温度测量。

    领先业界的 LSP-HD 具备 1000 个数据点的扫描性能，扫描速度高达每秒 150 次。LSP-HD 为过程成像的清晰度奠定了新的基准，能检测到极小的温度差异，有助改进过程控制和确保产品质量一致。

    简单集成：可通过单个以太网数据接口直接连接传感器头，无需单独的处理器，并采用以太网供电技术（PoE）以一根以太网电缆实现所有电气的连接。由于扫描仪仅需要一根电缆，因此能显着降低安装成本。

    LSP-HD 与现有的 AMETEK Land 红外线扫描装置向后兼容，并有多种型号可供选择。每种型号均针对玻璃、工业加工和钢铁工业的特定应用进行了优化。

    领先行业的测量技术
    LSP-HD 设计用于20℃（68°F）到 1700° C（3092°F）的恶劣工作环境。其具备高质量的光学元件，能以无可媲美的扫描速度生成高清热图像，助您实现卓越的过程控制。其高温型号具有领先业界的光学器件，光学系数可达 300 或 500：1。所有 LSP-HD 扫描仪均采用坚固的蓝宝石保护窗，可防止划伤，被酸或溶剂损坏。集成的激光对准验证技术是这系列产品的标准配置。

    简单、低成本的安装
    即插即用安装利用以太网（PoE）连接的单一电缆电源，降低了复杂性和成本。采用以太网行业标准布线和连接。同时也提供各种模拟和数字接口

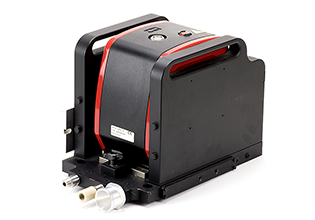

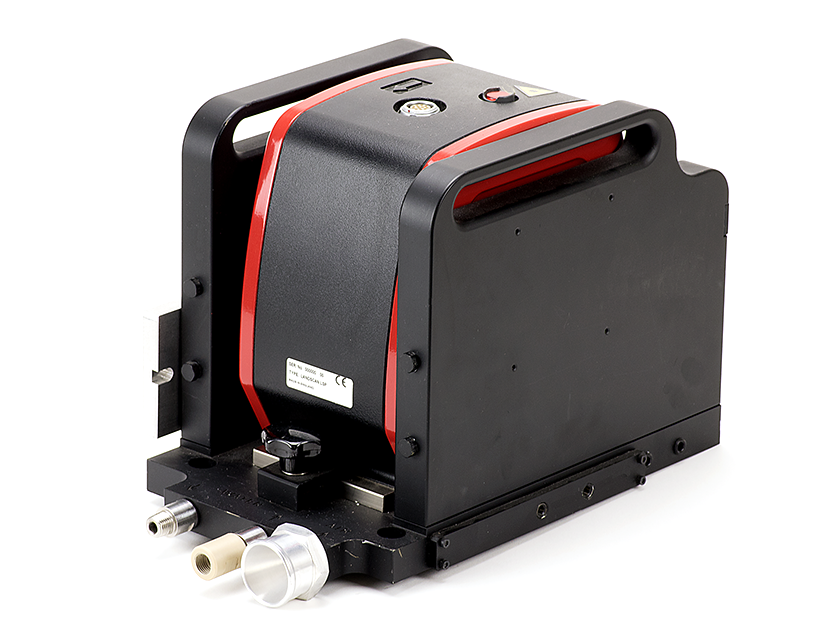

    Landscan LSP-HD 可以与先进的 WCA 显示和分析软件一起使用，也可以独立与其他系统进行数字通信。许多信号处理功能都直接集成在扫描仪中，因此不需要使用单独的计算机。Landscan LSP-HD 可以直接与 Siemens S7 PLC 和 ibaPDA 通信。具备免工具快拆式冷却和吹扫装置，，简化并加快了扫描仪的拆卸和重新安装速度，无需管道工断开任何接头。

    向后兼容性
    LSP-HD 可即插即用，并且与 LANDSCAN WCA 软件兼容，适用于所有现有的 LANDSCAN 红外线扫描器的安装，便于升级和更换。其具有与先前产品相同的外形，因此无需更换现有的安装硬件。

    LSP-HD 线行扫描仪是 AMETEK Land 领先市场的红外热像仪，适用于移动过程。


  • 型号 +


    Model Temperature Range Key Applications
    LSP-HD 10, 11 & 12
    LSP-HD 10 600 to 1400 °C / 1112 to 2552 °F Continuous Caster
    Reheat Furnace - Exit
    Hot Strip Mill
    Hot Plate Mill
    Hot Beam Mill
    LSP-HD 11 700 to 1500 °C / 1292 to 2732 °F
    LSP-HD 12 800 to 1700 °C / 1472 to 3092 °F
    LSP-HD 20, 21, 22 & 23
    LSP-HD 20
    		 200 to 850 °C / 392 to 1562 °F
    		 Continuous Annealing Lines
    Annealing Furnaces
    Galvanising and Galvanneal Lines
    Hot Strip Mill
    Hot Plate Mill
    LSP-HD 21  300 to 1000 °C / 572 to 1832 °F
    LSP-HD 22  400 to 1200 °C / 752 to 2192 °F
    LSP-HD 23  250 to 1000 °C / 482 to 1832 °F
    LSP-HD 5FL, 50, 51 & 52
    LSP-HD 5FL  150 to 750 °C / 302 to 1382 °F
    		 Float Glass Lines
    Lehr and Lehr Exit
    Glass Toughening/Tempering
    Glass Forming/Bending
    Glass Coating
    Solar Panels
    LSP-HD 50  150 to 750 °C / 302 to 1382 °F
    LSP-HD 51  250 to 850 °C / 482 to 1562 °F
    LSP-HD 52 500 to 1100 °C / 932 to 2012 °F
    LSP-HD 60, 61, 62 & 63
    LSP-HD 60
    		 20 to 250 °C / 68 to 482 °F
    		 Paper Rolls
    Paper Webs
    Paper Conveyors
    Rotary Kilns
    Non-woven Dryers
    Torpedo Cars
    Thermoforming
    Plastic Extruders
    Galvanizing lines
    LSP-HD 61  50 to 400 °C / 122 to 752 °F
    LSP-HD 62  100 to 600 °C / 212 to 1112 °F
    LSP-HD 63  50 to 850 °C / 122 to 1562 °F
    LSP-HD 71
    LSP-HD 71  50 to 350 °C / 122 to 662 °F
    		 Plastic Polymers
    Thin Plastics
    Plastic Thermoforming
    Steel Paint Coating Lines

  • 技术参数 +


    温度 20 至 1700°C 或 68 至 3092°F
    扫描角度 80°（通过软件可调至 40°）
    扫描速度 10 至 150Hz（可调整，步长为 1 Hz）
    样品数 1000 个样本
    连接 通过 M12 连接器连接工业以太网
    信号处理  多达 14 个用户可配置区域，具有最小/最大/平均/分位数/平均阈值
    基于 14 个区域的警报
    I/O  PoE 管理型 TCP/IP 工业以太网
    环境温度（规定）  5 至 60°C 或 41 至 140°F
    环境温度（操作）  5 至 70°C 或 41 至 158°F
    尺寸（宽 x 高 x 直径）  206 x 209 x 100mm 或 8.1 x 8.2 x 3.9 in
    激光  2 级，1.0 mW 最大输出功率，635nm，IEC60825-1：2001
    指示扫描平面和范围
    环境  IP65

  • Frequently Asked Questions +


    Question Answer
    What does an infrared linescanner do? An infrared linescanner builds a continuous thermal image of a moving process by scanning a single line hundreds of times per second. As the product moves underneath, those scan lines stitch together into a full two-dimensional thermal map showing temperature across the entire width. LAND linescanners like the LSP-HD are the industry standard for monitoring continuous processes where you need to see temperature variations across a wide, moving surface—detecting hot or cold streaks that point measurement would miss.
    What is the scan rate of the LSP-HD? The LSP-HD scans at up to 150 lines per second with 1,000 samples per line, delivering high-resolution thermal profiles across process widths from 0.15m to over 100m depending on optical configuration. It measures temperatures from 20°C to 1,700°C across its model range (standard range 300-1400°C, extended ranges available). The high scan rate ensures it keeps pace with fast-moving processes while still resolving fine temperature variations that could affect product quality.

    Which industries use linescanners?
    		 LAND linescanners are installed across cement (rotary kiln shell scanning), glass tempering and annealing, steel strip processing, paper and board manufacturing, textile heat treatment and asphalt production—essentially anywhere a wide, continuous, moving surface needs constant temperature monitoring to protect product quality and equipment integrity. The LSP-HD's rugged IP65-rated enclosure and industrial PoE single-cable installation make it well-suited to these demanding environments.
    Does the LSP-HD work with ImagePro? Yes—the LSP-HD integrates seamlessly with LAND's ImagePro V2 thermal imaging software and the LSPro configurator application. ImagePro provides advanced visualization, zone analysis, alarm management and long-term data trending. The system connects via Power over Ethernet (PoE), simplifying installation to a single cable while providing real-time thermal data to your control room for process optimization.
    Can it monitor cement kilns? Yes—the LSP-HD is widely used for continuous rotary cement kiln shell scanning, where early detection of hot spots helps prevent costly refractory failures and unplanned shutdowns. The high scan rate, wide field of view and rugged design handle the demanding kiln environment. By identifying developing problems before they become critical, plants typically reduce maintenance costs and extend campaign life while protecting against catastrophic failures.
