Cyclops L

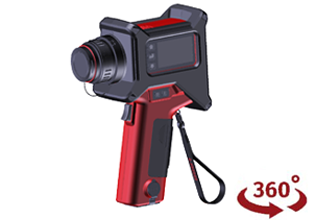

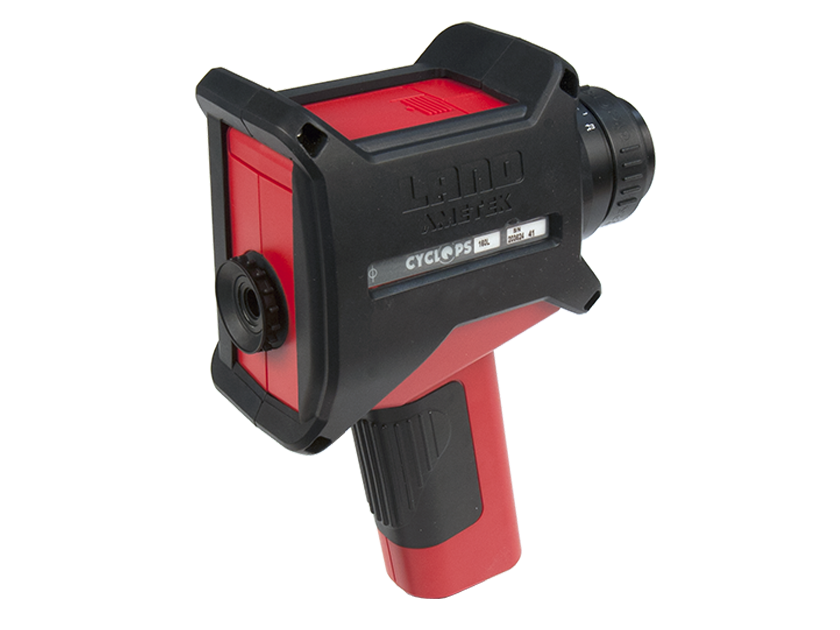

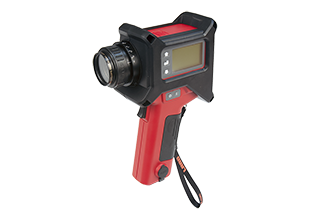

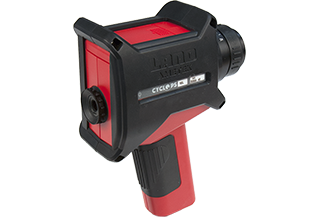

AMETEK Land Portable Non-Contact Thermometer - Cyclops L
Cyclops L 便携式测温仪是一款优质#高精度的手持式测温仪。该系列的非接触式测温仪设计符合人体工程学，可单手操作，能简便、准确地进行温度测量。

  • 概述 +


    Cyclops L 便携式非接触式高温计易于操作、操作简单，可提供精确的温度测量。能轻松在多个位置进行测量，并验证在线高温计读数。其耐用且轻的结构意让您可以连续操作数小时也不会疲劳。

    Cyclops L 的高分辨率镜头瞄准器和符合人体工程学的单手操作而设计，让您可以在恶劣的环境中轻松获取安全、准确的温度读数，并用另一只手让自己平衡。

    通过四种触发控制数据记录模式，Cyclops L 可在内部存储多达 9,999 个读数。所记录的数据可以通过蓝牙或 USB 传输到个人计算机。用户可以通过免费的 Cyclops Logger 软件查看和分析温度读数。

    Cyclops L 有几种型号，分别适用于液态金属、高温、中温和炉子等具特定应用。Cyclops L 能为玻璃生茶、碳氢化合物加工、工业加工和钢铁制造等行业提供高精度的温度测量。

    高精度的便携式测温仪
    Cyclops L 可以长时间持续运作。其内置的数据存储功能让您在温度计内记录多达 9,999 个测量点。坚固耐用的仪表保护套可保护 Cyclops L 免受恶劣环境的影响
    易于操作

    易于操作

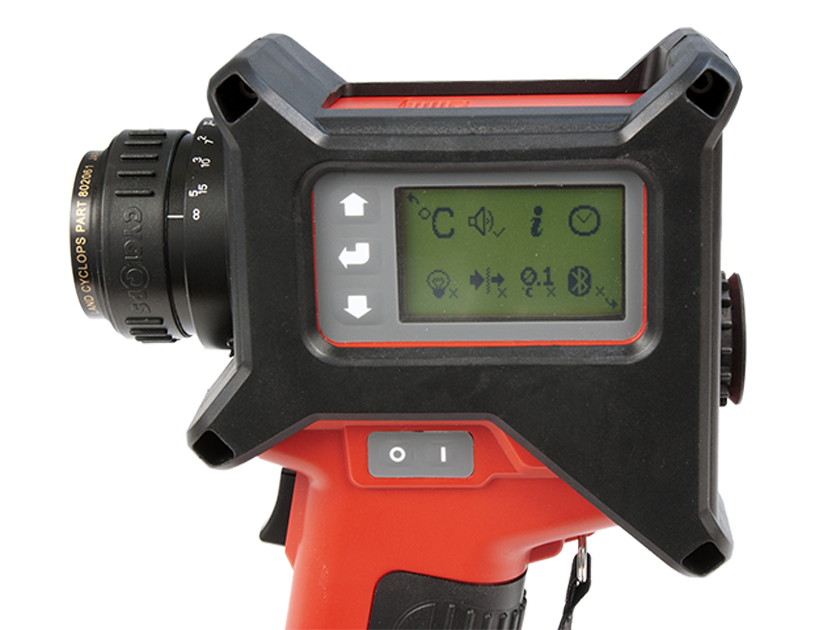

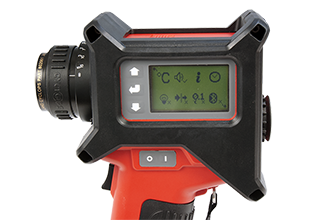

    Cyclops L 系列产品易于使用 - 高质量、通过镜头（TTL）的瞄准机制，让您只需通过目镜观察并能将镜头对准所需目标。通过视野中的小圆圈精确定义测量区域。然后只需拉动扳机即可。在四种模式之间切换以进行数据记录。温度读数显示在目镜内，也同时显示在仪器侧的第二个显示面板上。这样，站在你旁边的同事也可以同时查看读数。无线蓝牙数据传输进一步增强 Cyclops 的操作。

    独特的测量路线管理
    非常适用于具有多个测量位置的现场进行定期监测，或验证固定式高温计的读数。可供免费下载的 Cyclops Logger 软件为您的过程提供可配置的测量路线，并可将路线上传到您的测温仪。预先配置的设置包括每个测量位置的发射率和窗口校正信息。

    AMETEK Land 的 便携式 Cyclops L 系列有多种型号可供选择。





  • 发射率和背景温度补偿校正 +


    Cyclops Background
    Temperature
    C     		Corrected Emissivity
    Set Emissivity


    Measured
    Temperature(s)





    Corrected
    Temperature(s)

  • 规格 +


      CO55L  C100L  C160L  C390L
    测量范围 1000 至 2000°C 或 1832 至 3632°F  600 至 3000°C 或 1112 至 5432°F  200 至 1400°C 或 392 至 2552°F  450 至 1400°C 或 842 至 2552°F
    显示 外部背光 LCD 显示屏取景器具备
    4 位 LCD 显示器     		 外部背光 LCD 显示屏取景器具备
    5 位 LCD 显示器     		 外部背光 LCD 显示屏取景器具备
    5 位 LCD 显示器     		 外部背光 LCD 显示屏取景器具备
    4 位 LCD 显示器
    测量模式 连续、峰值、谷值和先进 Meltmaster 连续、峰值、谷值和平均值  连续、峰值、谷值和平均值   连续、峰值、谷值和平均值
    数据记录 可储存高达 9999 个读数，并具有和9内部路径;移动设备（4GB 标准存储）或 PC 记录软件（通过蓝牙®或 USB 连接器）
    数据记录模式 经典、点放、锁定、路线
    光学系统 9° 种视野；目镜调节范围从 -3.75 至 +2.5 屈光度
    聚焦范围 固定焦点，标称焦点距离高温计主体基准面 5 m 或 197 in 1 m 或 39.3 in 至无限远、 450 至 620 mm 或 17.7 至 24.5 in 和 215 mm、或 8.5 in 固定焦距 - 可选配近摄镜头  1 m 或 39.3 in 至无限远、 460 至 630 mm 或 18.1 至 24.8 in 和 217 mm、或 8.5 in 固定焦距 - 可选配近摄镜头  1 m 或 39.3 in 至无限远
    最小目标尺寸 平行 28 mm 或 1.1 in 的目标光斑直径，从镜头到 5 m 或 197 in  1 m 时为 5 mm 或 39.3 in 时为 0.19 in，1.8 mm 或 0.07 in 以及 0.4 mm 或 0.016 in - 可选配近摄镜头  1 m 时为 5 mm 或 39.3 in 时为 0.19 in，2.0 mm 或 0.08 in 以及 0.5 mm 或 0.2 in - 可选配近摄镜头  在距高温计主体基准 101.4 cm 或 39.9 in （标称）时为 4.8 mm 或 0.19 in
    光谱响应 额定 0.55 μm  1 μm 并具有先进的光谱滤波功能  1.6 μm 并具有先进的光谱滤波功能  额定 3.9 μm
    发射率调整 0.10 至 1.20，步长为 0.01
    响应时间 30 ms 30 ms  30 ms  <500 ms (to 98%) d>
    显示更新时间 0.5 s
    精度 <0.5% (K) d> ≤0.25% (K)  ± 0.25% C + 2 °C   ±0.5% (K)
    测量分辨率 0.1°C/1°F
    测量视野 固定焦点  180:1 圆形  180:1 圆形  180:1 方形
    重现性 <1 °C />2°F  1°C/2°F 1°C/2°F  1°C/2°F
    操作温度范围
    		 0 至 50°C 或 32 至 122°F
    电力需求 一个 MN1604/6LR61/PP3 电池或 USB
    输出 蓝牙® 或 USB连接器
    重量 0.83 kg 或 1.8 lb。
    密封 IP40
    免费的数据记录软件 软件可通过 Cyclops Logger（PC 和 Mobile）获得
    标准配件 镜头盖、保护窗/过滤器、电池、腕带、USB 线、热保护套
    可选附件 防水便携包、长适眼距目镜  特写镜头、防水便携包、长适眼距目镜、中性密度滤镜：1F 或 2F 选项 - 滤镜使图像变暗以为明亮的目标提供更好的图像对比度；较高温度的应用应使用两种。  特写镜头、防水便携包、长适眼距目镜  防水便携包、长适眼距目镜
    MARCOM0346

  • 型号 +


      CO55L Meltmaster C100L  C160L  C390L
    测量范围 1000 至 2000°C 或 1832 至 3632°F  600 至 3000°C 或 1112 至 5432°F  200 至 1400°C 或 392 至 2552°F  450 至 1400°C 或 842 至 2552°F
    应用 适用于熔融金属和金属
    铸造应用    		 钢、玻璃、耐火材料、
    热处理、
    半导体    		 钢，
    焊接、回火、
    退火等热处理和
    半导体    		 非常适用于重整
    炉，
    加热管，加热炉

  • Frequently Asked Questions +


    Question Answer
     What is the Cyclops L used for?  The Cyclops L is a handheld, non-contact pyrometer from LAND for accurate spot temperature readings of hot targets from 200°C to 3,000°C depending on the model. Backed by over 75 years of measurement expertise, it's a portable reference instrument that operators carry to the process for spot checks, audits and verifying fixed sensors. With internal storage for 9,999 readings, Bluetooth connectivity and traceable calibration, the Cyclops L is trusted as a portable calibration reference across steel, glass, foundry and heat treatment industries.
     What is the difference between the 100L, 160L and 390L? The Cyclops L series includes three models optimized for different applications: the 100L (600–1400°C) is the general-purpose industrial workhorse for most hot processes; the 160L (200–1600°C) extends to higher temperatures and is ideal for steel and glass applications; and the 390L (900–3000°C at 1 µm wavelength) is specifically tuned for molten metal and high-temperature furnace work. Each model uses a dedicated wavelength and optical system matched to its target temperature range for best-in-class accuracy.
     How accurate is the Cyclops L? The Cyclops L delivers reference-grade accuracy of ±0.5% of reading plus 1°C—precise enough that it's frequently used as the calibration reference for fixed pyrometers on the production line. The high-quality optics, precise sighting system and traceable calibration ensure consistent, reliable readings that engineers and quality teams can trust for process validation and equipment verification.
     Does it include data-logging software? Yes—the Cyclops L works with LAND's  Cyclops Logger software for PC and mobile devices, enabling readings to be captured, logged, timestamped and reviewed for trend analysis and quality documentation. The instrument itself stores up to 9,999 readings internally, which can be transferred via USB or Bluetooth. This makes building a complete measurement history and generating audit-ready reports straightforward.
     Can it be calibrated on-site? The Cyclops L is factory-calibrated by LAND using traceable blackbody sources and standards, ensuring accuracy you can trust for critical measurements. Rather than field calibration, recalibration is performed through LAND's service network to maintain traceability to national standards. This calibration traceability is exactly why the Cyclops L is specified as a portable reference pyrometer for verifying fixed sensors and meeting audit requirements.

    Which wavelength should I choose?

    As a general rule for a monochromatic pyrometer, you should choose the shortest wavelength that is able to measure the required temperature, This is because the relationship between the intensity of infrared radiation and object temperature is strongest at short wavelengths, thereby reducing the uncertainty associated with changes in emissivity.

    For example, C100L (1.0 µm), C160L (1.6 µm) and C390L (3.9 µm) can all measure an object at 800 °C. However the C100 will give the most accurate measurement.

    Two models are available whose wavelengths have been chosen for specific applications. C055L operates at 0.55 µm and is designed for measurements of liquid metals. It features a Meltmaster mode which uses a special algorithm to provide a stable temperature measurement in the presence of sparks, smoke and other features which can produce sudden changes in the reading of a conventional pyrometer.

    The C390L operates at a wavelength of 3.9 µm, which has been specifically chosen for furnace temperature measurements. This is because flames do not emit radiation at this wavelength, ensuring that the readings are unaffected by flame interference.
    What is the smallest item I can measure with Cyclops?

    Cyclops C055L measures a 28 mm diameter area at any distance between 1 m and 5 m.

    Other models have a minimum spot size of 5 mm at a distance of 1 m.
    What can I do if the measured object is too bright for comfort? Excessively bright objects can affect C100L as it can measure temperatures as high as 3000 °C. It is available in two versions, either 1F (with one filter to reduce the intensity of visible light) and 2F (with two filters, providing a strong reduction in intensity). A removable dark filter is also available which can be placed over the lens in place of the standard clear protection window.
    The 1F model is the most flexible option. It can be used from 600 to 1400 °C with the clear protection window and from 1400 to 3000 °C with the dark filter.
    The 2F model can be used from 600 to 1800 °C without changing the filter, so it is best suited to applications such as glass melt tanks where temperatures between 1200 °C and 1800 °C are common. It can also be used up to 3000 °C with the dark filter.

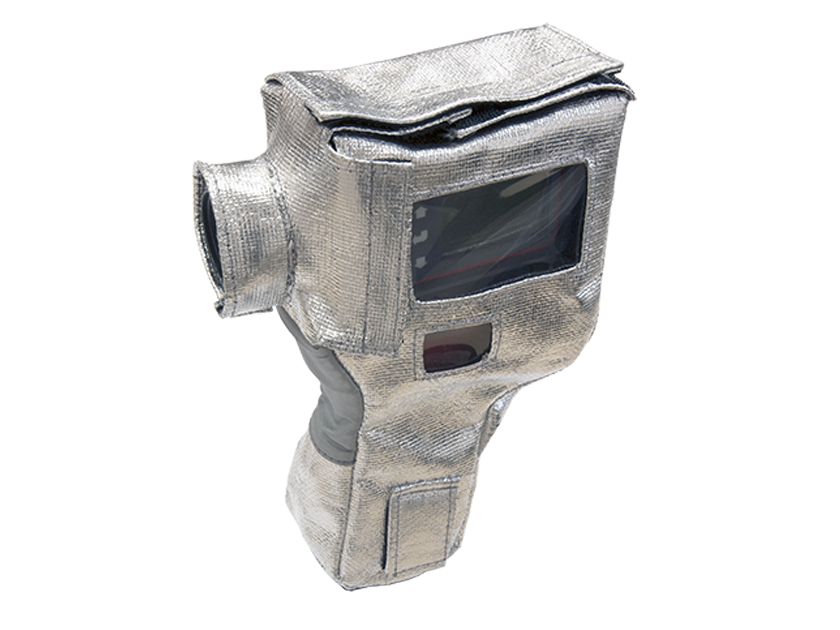

    Can I use Cyclops in a hot environment?  Cyclops is rated for operation from 0 to 50 °C, so it can be used in most places the operator can work without suffering heat stress. A reflective, thermally-insulating jacket is available to protect the instrument from high levels of radiative heating
    What I/O is available?

    Cyclops can be connected to a PC or Android mobile device for data display and transfer of logged data. Both Bluetooth and USB mini connections are available.
